Project Photos

Electrical work in Chattanooga homes

A look at real panel work, wiring, and lighting installations completed by On Point Electric for homeowners across Chattanooga, TN and the surrounding communities.

Call (423) 414-6893 Request a free estimate

Calls and text messages welcome · 24/7 emergency electrical service available

Recent project photos

Panels, wiring, and lighting installations

These photos show actual electrical work and related installations completed for Chattanooga-area customers. No staged or stock photography.

On Point Electric technician inspecting a labeled residential breaker panel during a service call in Chattanooga — Panels & Wiring
On-site breaker panel inspection

Neatly wired dual electrical breaker panels installed by On Point Electric, showing careful workmanship — Panels & Wiring
Dual breaker panel installation

Open residential breaker panel showing organized circuit wiring and breakers during an electrical inspection — Panels & Wiring
Breaker panel wiring inspected and organized for safety

Electric range and over-the-range microwave with properly placed outlets in a renovated kitchen backsplash — Kitchen Renovation Electrical
Range and microwave circuits in a kitchen remodel

Kitchen island and cabinetry lit by a decorative ceiling light fixture after an electrical renovation — Kitchen Renovation Electrical
Kitchen island lighting fixture installation

Full kitchen view showing recessed and decorative lighting layout after electrical renovation work — Kitchen Renovation Electrical
Complete kitchen lighting layout

Kitchen sink area with GFCI outlets and under-cabinet lighting installed above the countertop — Kitchen Renovation Electrical
GFCI outlets and under-cabinet lighting near the sink

Outdated residential breaker panel with door open prior to service upgrade and replacement — Panels & Wiring
Existing residential electrical panel prior to replacement

Wall opening with old panel removed and branch circuit wiring prepped for a new breaker panel installation — Panels & Wiring
Panel cutout and circuit wiring prepped during replacement

Newly installed main breaker panel interior showing clean, organized, code-compliant circuit wiring — Panels & Wiring
New main breaker panel interior with organized wiring

Completed Square D breaker panel installation with clean deadfront cover and surge protector module — Panels & Wiring
Completed Square D panel upgrade with deadfront cover

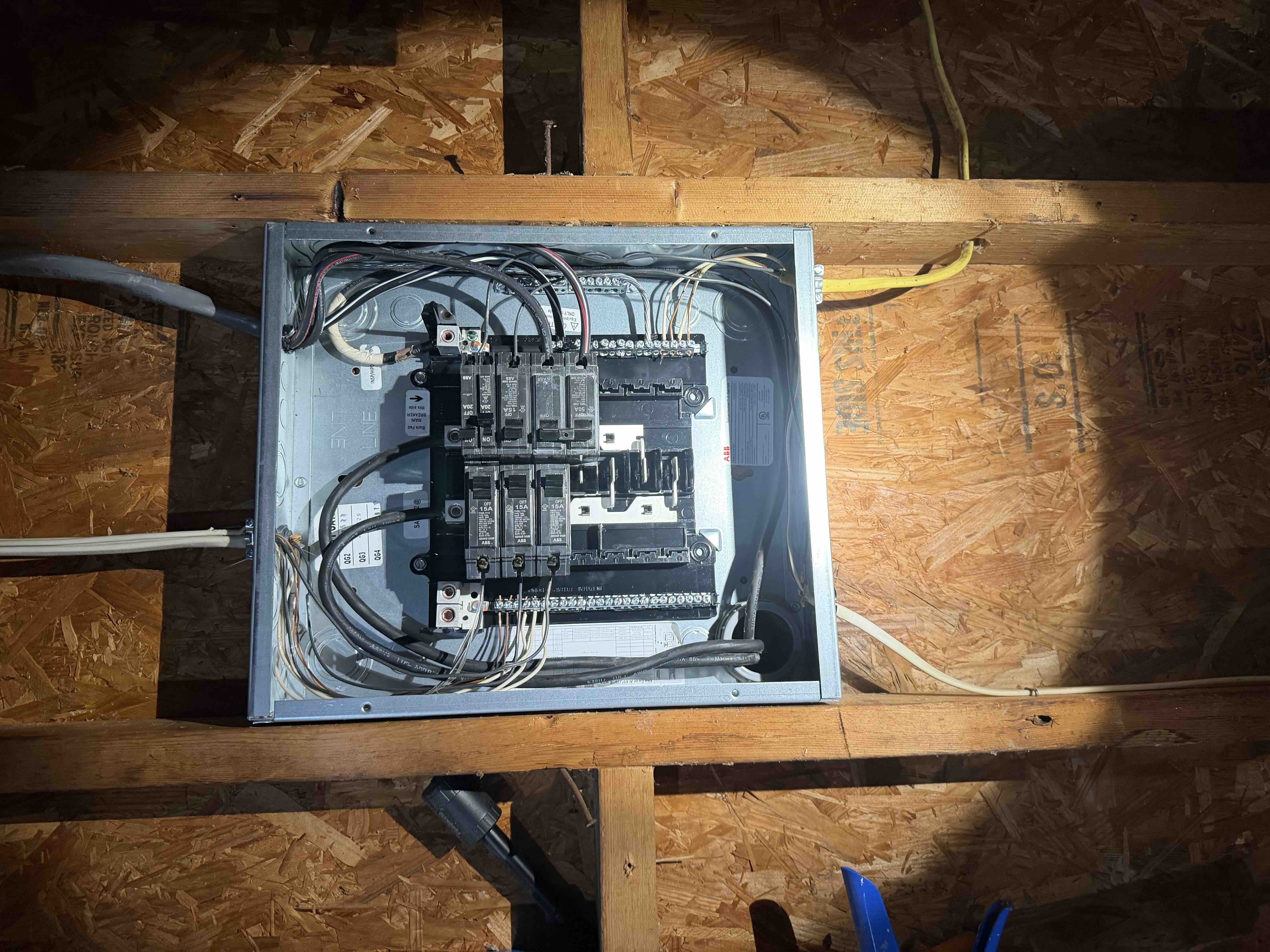

Subpanel interior box mounted between wall framing with organized circuit breakers and neutral bus wiring — Panels & Wiring
Subpanel breaker box installation in wood framing

Newly installed ABB load center breaker box mounted in wood framing with breakers and door open — Panels & Wiring
ABB load center breaker panel installation in wood framing

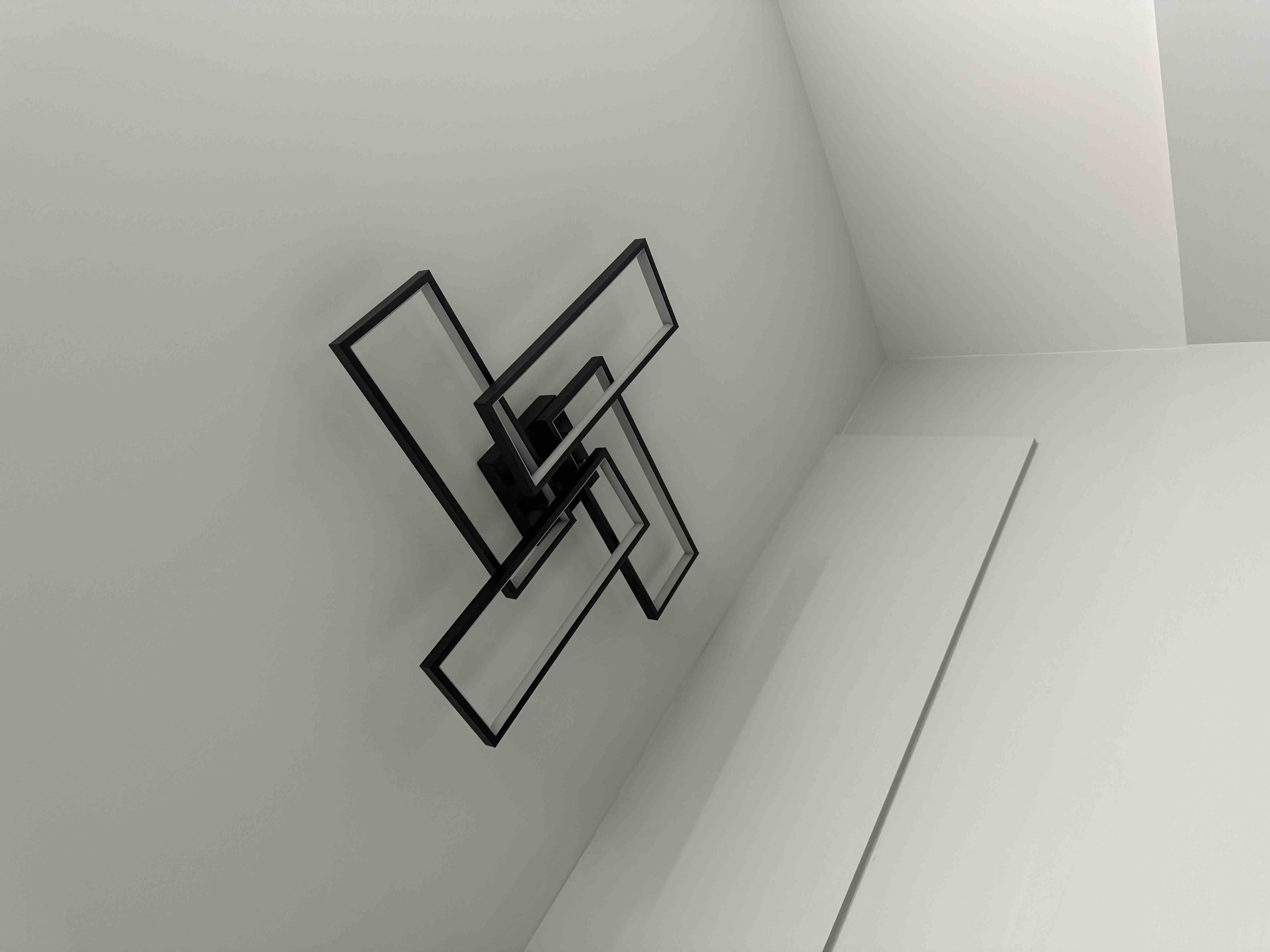

Modern black geometric pinwheel LED wall and ceiling light fixture installation — Lighting & Fixtures
Custom geometric black LED fixture installation

Linear oval black LED ring pendant light floating from slender suspension wires — Lighting & Fixtures
Modern linear oval LED pendant light installation

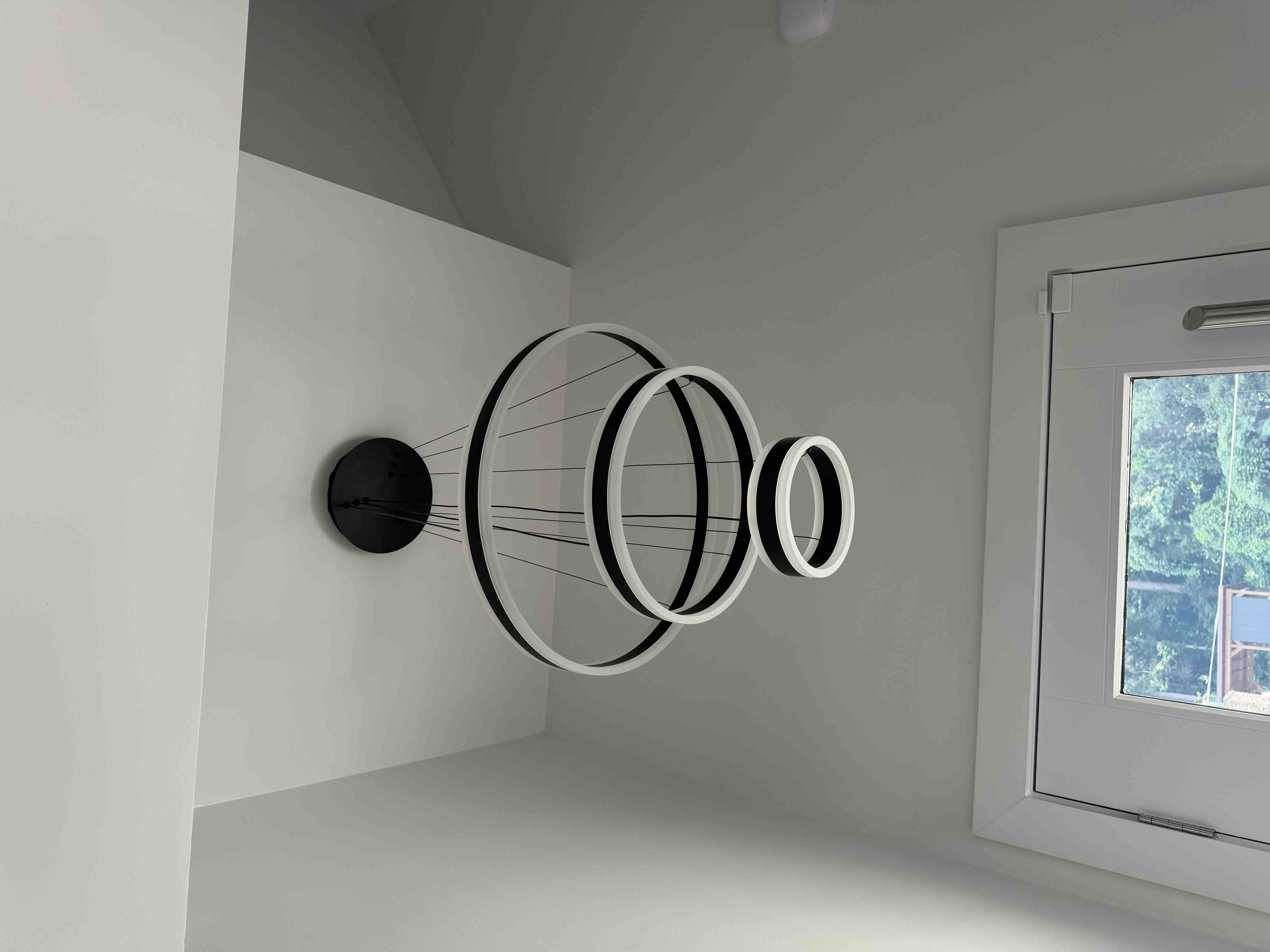

Modern multi-tier concentric circular ring LED pendant chandelier in black and white — Lighting & Fixtures
Multi-ring LED chandelier pendant installation

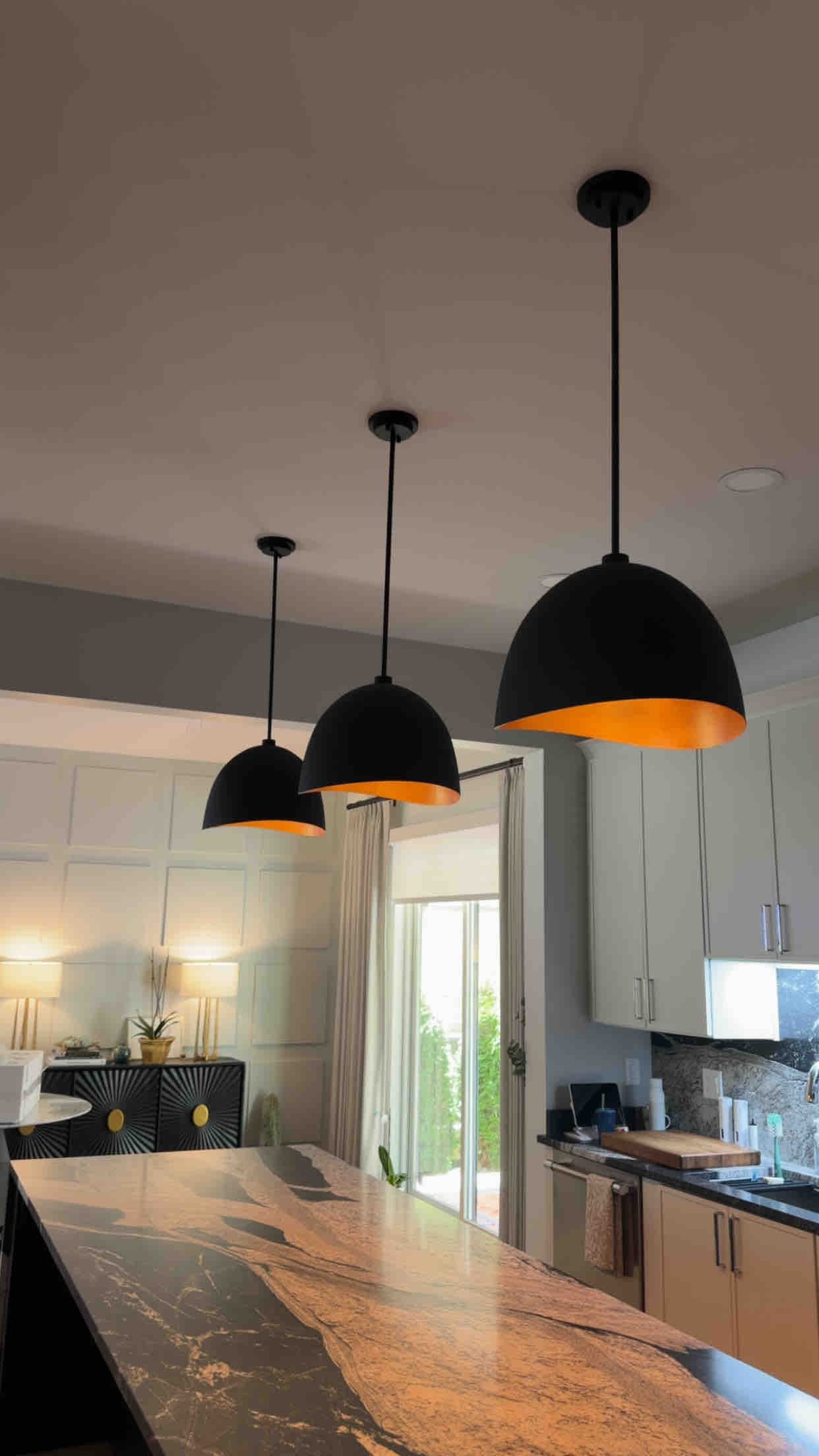

Trio of matte black dome pendant lights with warm gold interior lining over a marble kitchen island — Lighting & Fixtures
Matte black & gold dome pendant lights over kitchen island

Cluster of round crystal glass orbs forming a wall sconce light fixture, illuminated in an entryway — Lighting & Fixtures
Crystal orb cluster wall sconce installation

Brass sputnik-style chandelier with round textured glass globes installed above a living room seating area — Lighting & Fixtures
Brass sputnik chandelier installation

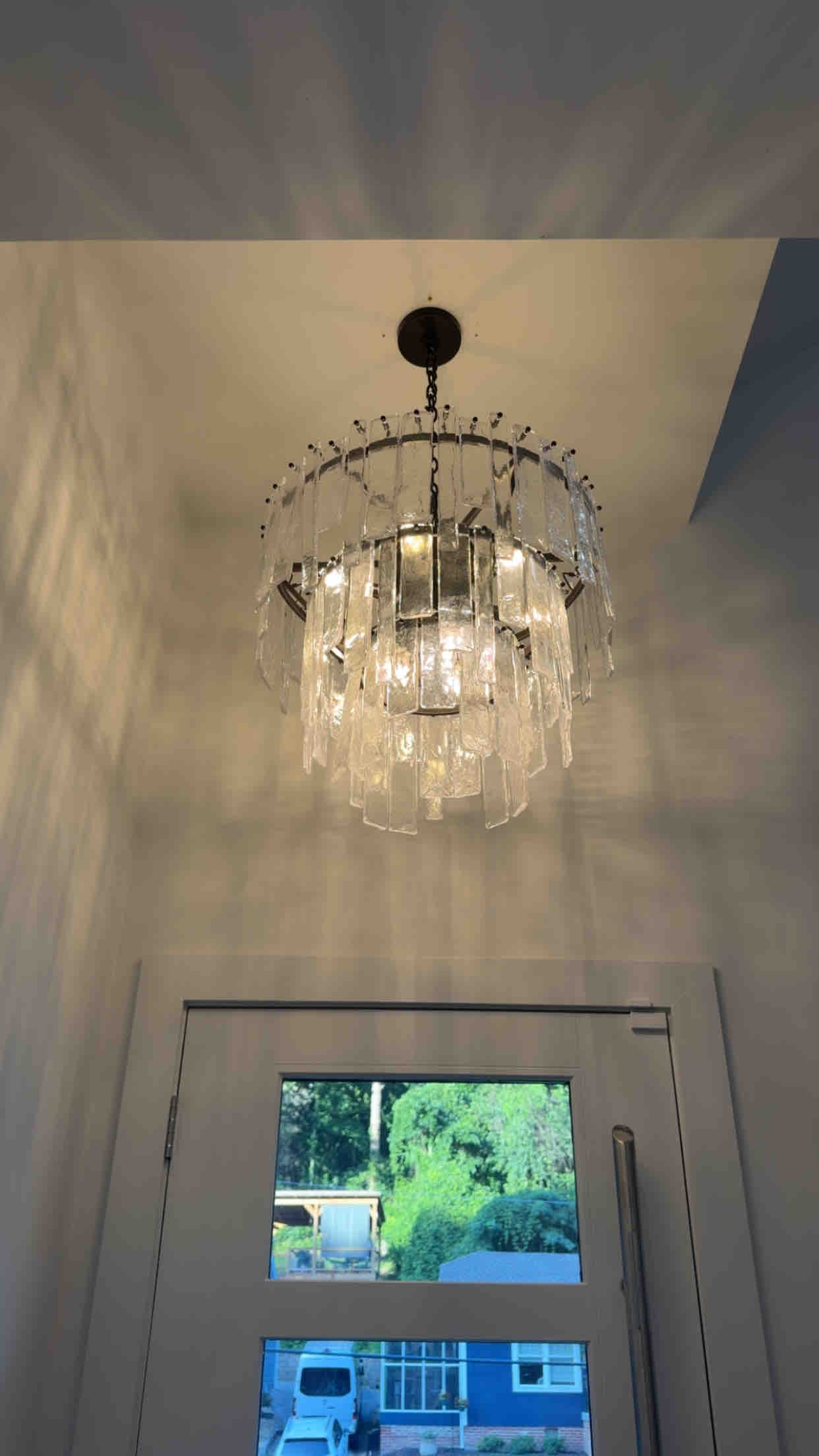

Multi-tier textured glass panel pendant chandelier hanging in a two-story entryway above the front door — Lighting & Fixtures
Tiered glass pendant chandelier in home entryway

Open dual breaker panels with every circuit wire clearly tagged and labeled by room during installation — Panels & Wiring
Dual panel wiring labeled by circuit during installation

Completed dual breaker panel directory with each circuit clearly labeled by room for easy homeowner reference — Panels & Wiring
Completed panel directory labeled by room and circuit

Hexagon-shaped LED light panels arranged in a honeycomb pattern, illuminated during a custom lighting fixture installation — Lighting & Fixtures
Custom hexagon LED accent lighting installation

Wide view of multiple hexagon LED honeycomb light fixtures illuminated and suspended in a workshop space — Lighting & Fixtures
Multiple hexagon LED fixtures wired and tested

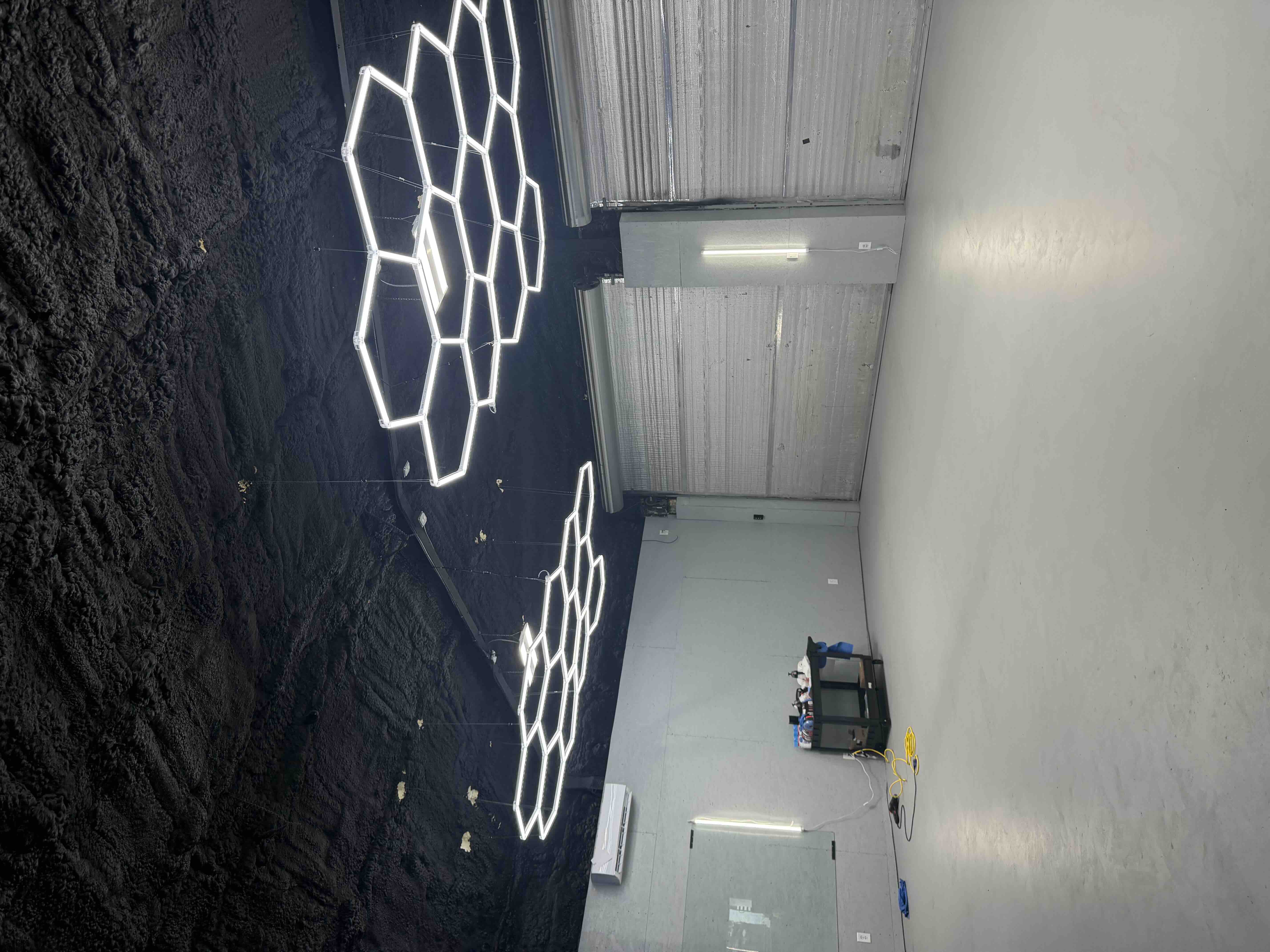

Two illuminated hexagon LED honeycomb light fixtures suspended by wires in a shop during fabrication — Lighting & Fixtures
Hexagon LED fixtures suspended during setup

Completed breaker panel installation with the door open, showing a handwritten circuit directory card for homeowner reference — Panels & Wiring
Completed panel with labeled circuit directory card

Open breaker panel with circuit wires individually tagged and hand-labeled for rooms such as the kitchen, dryer, and living room — Panels & Wiring
Circuits tagged by room during panel wiring

New breaker panel box mounted in a wall cutout with circuit wires from both sides individually tagged in orange during a panel replacement — Panels & Wiring
New panel box mounted with circuits tagged on both sides

Wall cutout prepared for a breaker panel replacement with bundled circuit wires tagged and set aside before installation — Panels & Wiring
Wall opening prepped and circuits bundled before panel install

Newly installed ABB breaker panel with a 200 amp main breaker, surge protective device, and every circuit wire tagged in orange — Panels & Wiring
New ABB panel with 200 amp main and surge protection installed

Close view of a fully wired ABB breaker panel with rows of labeled circuit breakers and a Type 1 surge protective device — Panels & Wiring
Fully wired ABB panel with rows of labeled breakers

Completed ABB breaker panel with the door closed, showing a printed circuit directory card labeling every room and circuit — Panels & Wiring
Finished panel with a printed directory labeling every circuit

Siemens 200A outdoor main disconnect meter combo panel with integrated surge protection device installed next to an electric utility meter — Panels & Wiring
Siemens 200A outdoor meter combo panel with surge protection

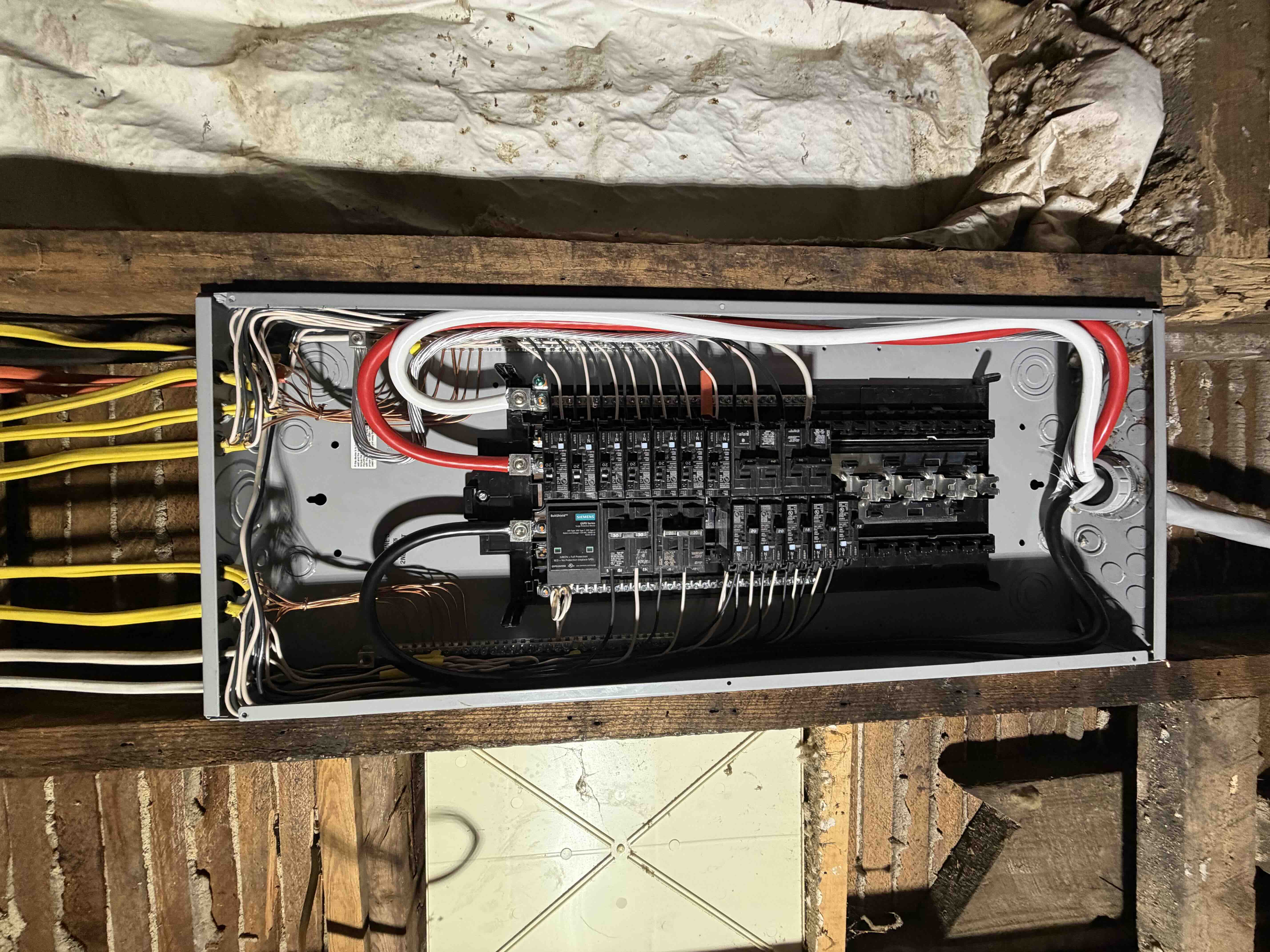

Siemens load center breaker panel installed between wooden ceiling joists with clean branch circuit wiring and main feeder lines — Panels & Wiring
Siemens breaker panel installed between ceiling framing joists

Close view of Romex cables routed neatly into a Siemens load center panel with ground and neutral conductors bonded — Panels & Wiring
Neat Romex cable inflow and grounding in a Siemens panel

Detailed view of main service entry feeder wires connected to Siemens 200A main lugs with surge protection device — Panels & Wiring
200A main feeder connections and Siemens surge protection

Full interior view of a Siemens breaker panel with circuit breakers, neutral bars, ground wires, and main feeders neatly arranged — Panels & Wiring
Fully wired Siemens load center interior with neat circuit runs

Old fuse panel with a main disconnect handle and screw-in glass fuses before replacement — Panels & Wiring
Outdated fuse panel before replacement

Old fuse panel interior with tangled wiring and aging fuse blocks prior to a breaker panel upgrade — Panels & Wiring
Aging fuse panel wiring prior to upgrade

Empty electrical panel box with fuse blocks removed, prepped for a new breaker panel installation — Panels & Wiring
Panel box cleared out ahead of the new install

New Siemens 200 amp breaker panel installed in place of the old fuse panel with organized circuit breakers and wiring — Panels & Wiring
New Siemens 200A breaker panel replacing the old fuse panel

Angled view of the completed Siemens 200 amp breaker panel installation with labeled circuit breakers and neat wiring — Panels & Wiring
Completed 200A breaker panel upgrade, angled view

Open 200 amp Siemens breaker panel in a closet with every circuit hand-labeled, including dryer, range, water heater, A/C, and surge protector — Panels & Wiring
200A Siemens panel with every circuit clearly labeled

Have a project you would like done this well?

Call or request a free estimate for your panel, wiring, or lighting project in Chattanooga, TN and the surrounding communities.
